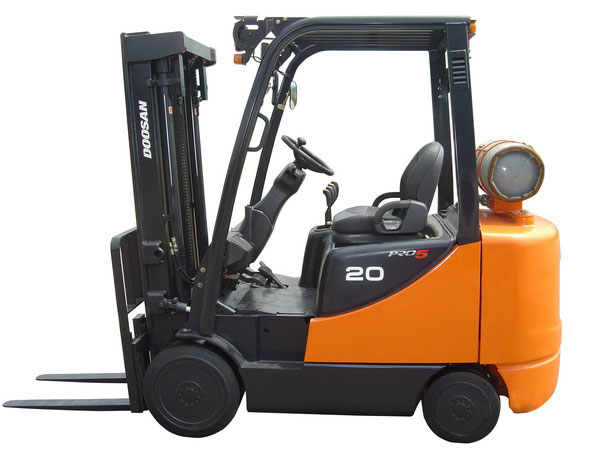

4,000 – 6,500 lb Internal Combustion Cushion Series
These trucks offer the ultimate combination of power and performance, reliability, operator comfort, and economy.
This series of trucks provides a well balanced mix of enhanced technology, operator comfort refinements, performance efficiencies and serviceability advances which will help to increase productivity and lower your operating costs.
Optimized Operator Comfort: The operator’s station has been designed to enhance productivity throughout long hours of operation. The rubber floor mat reduces noise and vibration for the operator’s comfort. The pedal system is designed for minimal operator effort and provides better control with spacious foot room for the driver.
Proven and Durable Components: The durability and engineering design of our components aid in minimizing your downtime and reducing your maintenance costs by instituting several features:
- Environmentally friendly and reliable engine;
- Vented flywheel housing for better cooling efficiency;
- Steer axle articulation maintains 4-wheel contact with floor on even surface;
- Rugged frame structure.
Enhanced Maintenance and Serviceability:
Contact the sales team at (704) 816-8960 or sales@atlanticforkliftservices.com
| Model | Capacity (lb) Power | Power | Tire | Brake |
|---|---|---|---|---|
| D20/25/30G | 4,000/5,000/6,000 | 3.3 liter (diesel) | Pneumatic | Shoe |
| G20/25/30G | 4,000/5,000/6,000 | 2.4 liter (LPG) | Pneumatic | Shoe |
| GC20/25/30/33E | 4,000/5,000/6,000/6,500 | 2.4 liter (LPG) | Pneumatic | Oil Cooled Disc |
| GC20/25/30/33P | 4,000/5,000/6,000/6,500 | 2.4 liter (LPG) | Pneumatic | Oil Cooled Disc |

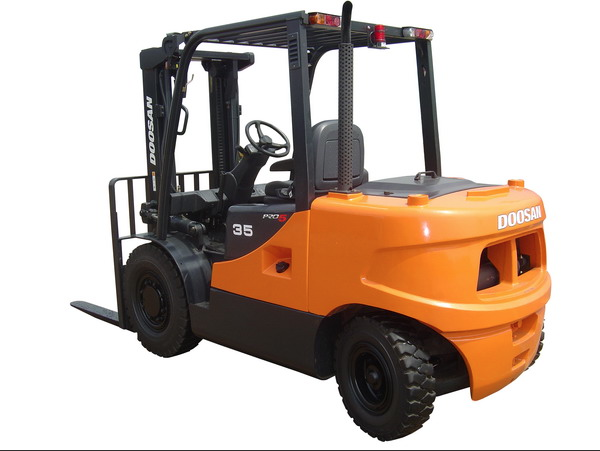

7,000 – 12,000 lb Internal Combustion Cushion/Pneumatic Series
Highly efficient and reliable forklifts with productivity enhanced features.
These rugged pneumatics are designed to exceed the expectations of operators, production personnel, and service technicians. The 7,000 – 12,000 lb IC Pneumatic & Cushion Series trucks will keep even the toughest operation running smoothly, all day, everyday with:
- Powerful and
fuel efficient LP Gas and Diesel engines that provide high horsepower ratings and comply with EPA Tier III emission regulations; Heavy duty planetary drive axle coupled with electric shift transmission transfers high torque to the drive wheels for maximum productivity;- Ergonomically designed operator compartment with deck
mounted hydraulic control levers, fully adjustable steer column,automotive style operator pedals, and full suspension seat keeps operatorsfresh throughout operating shifts.
Contact the sales team at (704) 842-3242 or sales@atlanticforkliftservices.com
| Model | Capacity (lb) | Power | Tire | Brake |
|---|---|---|---|---|
| GC35/40/45S/GC50/55C | 7,000/8,000/9,000/10,000/12,000 | 4.3 liter (LPG) | Cushion | Oil Cooled Disc |
| D35/40/45S/D50/55C | 8,000/9,000/10,000/12,000 | Diesel Interim Tier IV | Pneumatic | Shoe or Oil Cooled Disc |
| G35/40/45S/G50/55C | 8,000/9,000/10,000/11,000/12,000 | 4.3 liter (LPG) | Pneumatic | Shoe or Oil Cooled Disc |

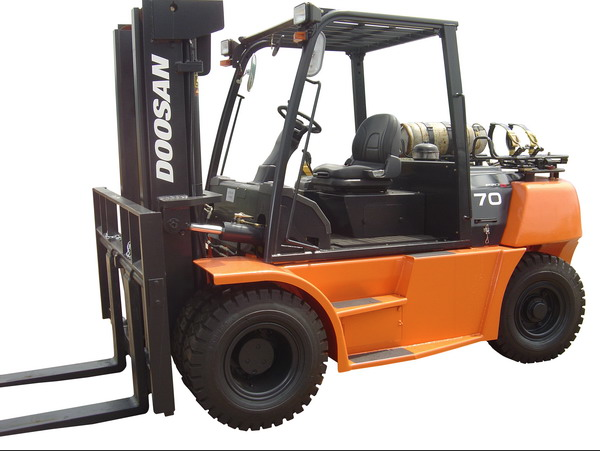

11,000- 20,000 lb Internal Combustion Pneumatic Series
These trucks have an optimized design and wide range of options for heavy duty operation.
Our 11,000 – 20,000 lb IC Pneumatic Series trucks are built to meet the requirements of your specific heavy duty applications with the aid of the following features:
- Powertrain improvements that
maximizes gradeability in order to handle the toughest yard conditions; - Fully electric
autoshift on D60/70/80S-5 (3 Speed) transmission provides smooth gear shifting for fast and efficient operation; - Dual element air cleaner for peak engine performance.
| Model | Capacity (lb) | Power | Brake | Transmission |
|---|---|---|---|---|
| D60/70S | 11,000/13,500/15,500 | Diesel Interim Tier IV | Pneumatic | 3-Speed Full Autoshift |
| D60/70S | 11,000/13,500/15,500 | Diesel Interim Tier IV | Pneumatic | 2-Speed Powershift |
| D80/90S | 17,500/20,000 | Diesel Interim Tier IV | Pneumatic | 3-Speed Full Autoshift |
| G60/70S | 13,500/15,500 | 4.3 liter (LPG) | Pneumatic | 2-Speed Powershift |
25,000 – 36,000 lb Internal Combustion Pneumatic Series
Robust and durable forklifts to handle the toughest tasks in the most demanding of applications with speed, power, and efficiency.

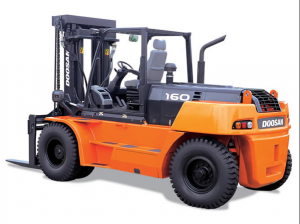

The D110/130/160S with lifting capacity of up to 36,000 lbs are the most robust and durable machines in the Bobcat Forklifts’s forklift product line-up. These powerful pneumatics can handle the toughest tasks in the most demanding applications. Features include:
- Powerful and efficient intercooler turbo-charged Bobcat Forklifts 5.9 liter diesel engine with up to 158 hp and Interim Tier IV compliant;
- Fully electric controlled Autoshift Transmission provides electronic inching enabling even massive loads to be moved with great precision;
- Spacious operator compartment with full suspension deluxe seat, tilting steering column, ergonomically located pedals, and integrated instrument panel keeps the operator comfortable and productive;
- Pilot actuated hydraulic control valve with minimal valve
throw provides smooth and responsive hydraulics for superb load control.
| Model | Capacity (lb) | Power | Tire | Brake | Transmission |
|---|---|---|---|---|---|
| D110/130/160S | 25,000/29,000/36,000 | Diesel, Interim Tier IV | Pneumatic | Oil Cooled Disc | 3-Speed Full Autoshift |
